Refrigerators and Freezers
Generally, the laboratory refrigerator, is made of resistant steel material and consists of an evaporator, storage cabinet located under the evaporator, where you can place shelves for storage, as well as the thermostat, which allows you to open and close an electrical circuit by action of a change of temperature, and the cooling system. The evaporator, located on top of the cold cabinet with sub-zero cooling functions, can reach temperatures of 5 to 30 °C.
It complies with the processes of conservation of samples and own substances for future studies, such as blood and derivatives, biological fluids and reactive tissues, chemical, biological and strains.
Types of Refrigerators and Freezers a Laboratory may need
Chest Freezer
Protection
- Multiple malfunction alarms to detect high and low temperature , sensor error, power off, temperature controller malfunction, door ajar.
- Two types of alarm indications: audible buzzing and visual flashing light.
- Corrosion proof cabinet interior design
Reliability
- Chemically stable, CFC -free, commercially available and environmentally safe refrigerant.
- LED digital display for clear observation,
- Wide voltage tolerance design with applicable voltage range of 187-242V/AC
Combined Frezeer
A refrigerator is equipment specially designed for use in the laboratory, the main purpose of which is to keep very important substances, fluids and samples in perfect refrigeration. It is a device that provides a controlled environment, where these substances are conserved to optimal conditions.
This equipment is used to cool samples or specimens for preservation. They consist of refrigeration units for storing blood plasma and other blood products, as well as vaccines and other medical or pharmaceutical supplies. They differ from traditional refrigerators used in homes or retail establishments because they need to be completely hygienic and completely reliable.
In Kalstein you can find the ideal Refrigerators and Freezers for your Laboratory
A laboratory refrigerator is a device that allows the effective preservation of all types of substances refrigerated in it, whether liquid, solid or homogeneous. This is why it is considered essential equipment within the laboratory.
-60C Biomedical Ultra Low Temperature Chest Freezer YR05315
Microprocessor control, adjustable temperature range: -25CºC to -60ºC can adjust the tempeture you need conveniently...
‘-86℃ Digital display Ultra low temperat upright freezer for Lab/Hospital
ULT freezer is specially designed and manufactured for long term storage of various biological products, including...
316L 2-8C Upright Medical Grade Refrigerator Pharmaceutical YR05288
Equipped with a complete temperature alarm system featuring audible buzzer and visible flashing light...
728L Ultra Low Temperature Upright Freezer Digital Display
ULT freezer is specially designed and manufactured for long term storage of various biological products, including viruses, germs, erythrocytes, leucocytes and cutis...
Our Top-selling Lab Cooler
- Microprocessor-controlled system designed for controlled rage of -40ºC to -86ºC for cabinet space with 1ºC increment.
- Settable high temperature and low temperature alarms.
- Automatic clean-filter alarm and sensor error alert.
- Adjustable storage shelf height.
- Optional temperature recorder. storage racks and storage box
- Installation and Application
- Wide rage operating voltage system from 187V to 242V designed to allow units installed in areas with poor voltage condition.
- Suitable for 10ºC to 32ºCambient temperature
Model | YR05110 | |
Specificaitons
|
Shelf/drawer QTY | Stainless steel shelf/3 |
Cooling | Direct cooling | |
Defrost | Manual | |
Refrigerant | Mixed-gas | |
Power Consumption(kWh/24h) | 20 | |
Noise(db) | 50 | |
Ambient temperature(℃) | 10~32℃ | |
Temperature range(℃) | -40~-86℃ | |
Cooling system
|
Compressor brand/QTY | SECOP/2 |
Sensor | PTC | |
Temperature controller | Microprocessor | |
Display | Digital display | |
Power
|
Voltage/frequency(V/Hz) | 220/50Hz |
Power(W) | 1400W | |
Current(A) | 8.8 | |
Material
|
Inside material | Stainless steel |
Outside material | Color sprayed steel | |
Insulation | PURF | |
Size
|
Capacity(L/cu.ft) | 728/25.7 |
NT./GT.(kg) | 374/394 | |
Exterior size(W*D*H)(mm) | 1229*1012*1994.5 | |
Interior size(W*D*H)(mm) | 963*571*1350 | |
Package size(W*D*H)(mm) | 1320*970*2185 | |
CBM | 2.79 | |
20GP/40GP/40HQ | 10/21/21 | |
Frozen Racks
|
Racks | 24(5*4/6*4) |
Boxes (2 Inches) | 504 | |
Samples(2ml) | 50400 | |
Alarm
|
High/low temperature | Y |
Power failure | Y | |
Abnormal voltage | Y | |
Sensor error | Y | |
Filter screen check | Y | |
Thermostat failure | Y | |
Low battery | Y | |
Condenser clean | Y | |
High ambient temperature | Y | |
Door ajar | Y | |
Power failure backup system(alarm) | 72h | |
Accessories
|
Castor | Y |
Inside door | 2 | |
Test hole QTY/diameter | 1/25MM | |
USB port | Y | |
Chart recorder | / | |
Data logger | Optional | |
Remote alarm port | Y | |
Optional
|
CO2 back up system | Optional |
LN2 back up system | Optional | |
Other | Certification | ISO.CE |
Analysis of the best Refrigerators and Freezers for your Laboratory
Freezers and COVID vaccine
A freezer is a refrigeration equipment that comprises a thermally insulated compartment, which helps it to keep cold and thus avoid damage or degradation....
How is a Laboratory Refrigerator made?
Generally, the laboratory refrigerator, is made of resistant steel material and consists of an evaporator...
What are the characteristics of a laboratory refrigerator?
A laboratory refrigerator is equipment designed to maintain a controlled environment (refrigerated space)...
How many types of laboratory refrigerators are there?
A laboratory refrigerator is a specialized equipment of great relevance and very useful in these places, ...
Catalog of models of Refrigerators and Freezers on offer
-
588 Liters Laboratory Upright Freezer Color Sprayed Steel YR05303
-
Blood Bank Freezer With 12 Pcs 304 Stainless Steel Drawers YR05292
-

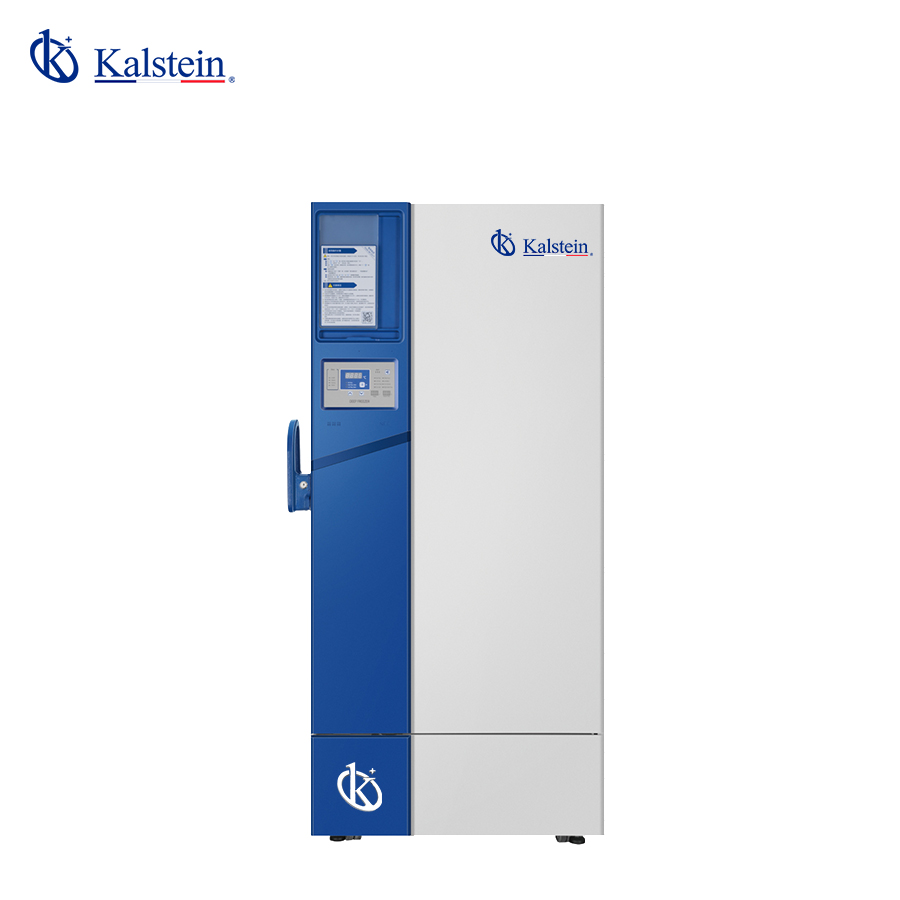

‘-30°C Forced Air Cooling Biomedical Freezer YR05308-1
-
Single Door Medical Refrigerator Covid Vaccine Storage YR05288 // YR05289-2
Select options This product has multiple variants. The options may be chosen on the product page -
Medical Refrigerator YR05086
-
22 °C Blood Platelet Incubator YR06028-YR06029
Select options This product has multiple variants. The options may be chosen on the product page -

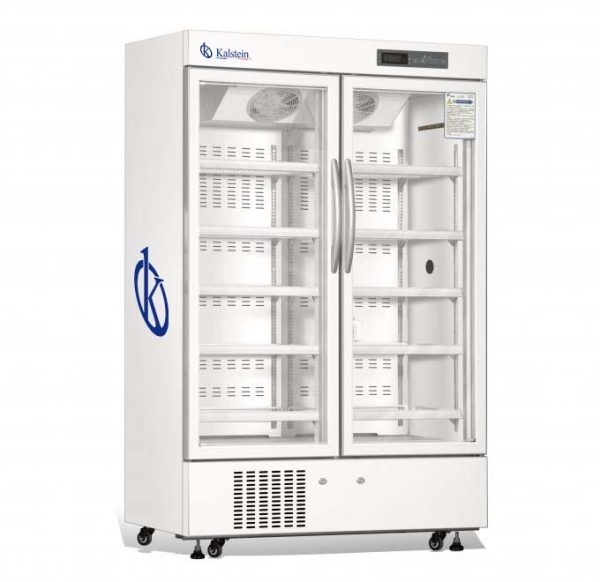

1006L Pharmacy Medical Refrigerator , Hospital Grade Refrigerator YR05087-1
-
105L Biomedical Chest Freezer Open Top YR05316
Guides to become an expert in Refrigerators and Freezers
The laboratory freezer: what are its technical bases of operation?
Ultra freezers, also known as -80 freezers or ultra-low temperature freezers, due to the temperature they handle, are a very...
Storing Hematological Plasmas with the Use of Laboratory Freezers
The region became culturally distinguishable from the Lowlands from the later Middle Ages into the modern period...
What are the different applications of a laboratory refrigerator?
A refrigerator is equipment specially designed for use in the laboratory, the main purpose of which is to keep very important...
How many types of laboratory ultrasonography freezers are there?
Ultra freezers are one of the main tools used in laboratories. The main function of this equipment is to protect biological samples by keeping them at very low temperatures. Its operating temperature can vary from -45 °C to -89 °C, although there are...
Videos of Refrigerators and Freezers in operation
In this section you can find our refrigerators and freezers in operation, packed, receiving service, etc.
Process of using Refrigerators and Freezers
Laboratory refrigerators are equipment designed to store samples of patients' blood and blood products, urine, and cerebrospinal fluid after the test, and to store samples obtained microbiologically. The cooling range of these common laboratory refrigerators is normally 1C-8C, depending on the laboratory protocol. These kits are reliable and also store reagents in a very stable way, as they commonly have a circular paper temperature control system, so that any deviation is easily detected.
Laboratory refrigerators may include anti-freeze fans to keep moisture in the cooling chamber. This allows a drier climate for dry reagents, or materials that are susceptible to moisture contamination. Among its applications is the use of these equipment to store microbiological materials such as media plates, making procurement easier, and inventory of supplies can be done without opening doors when they are glass. These glass doors are double to triple glazed and have a sandwich vacuum for excellent insulation. Air is often circulated as a fan to control moisture and cooling.
Frequently asked questions about Refrigerators and Freezers from our customers
How to know the prices of refrigerators and freezers?
To know the price of refrigerators and freezers we invite you to send us an email with your request through the contact form.
What are the delivery times for refrigerators and freezers?
- If the equipment of your interest is in stock or if it must be manufactured.
- The type of freight you have chosen, this may be; air or sea.
How to make a purchase of refrigerators and freezers?
- By email: [email protected]
- By telephone: +33 (0) 1 78 95 87 02
- E-commerce: Via Kalstein's official website in your country.
How does the warranty work?
Can I request a quote online?
Of course, you can request a quote for the Kalstein team of your interest, directly from our official website. Once you have identified your preferred model, click HERE
