Anaesthetic Machine
Anesthesia machines are medical equipment that guarantee the supply of an exact amount of anesthetic gas to a patient during a surgical process, with the aim that their health is not compromised. They provide safe, adequate, programmed and continuous or intermittent administration of oxygen, medical gases and anesthetic agents; allowing spontaneous or controlled ventilation of the patient.
Anesthesia machines receive medicinal gases and accurately distribute the flow and pressure of each gas according to the needs of the patient, these settings are usually inserted manually by the operator. These must be handled by highly qualified medical personnel trained in their use, who must also periodically verify their calibrations and operation.
Types of Anesthesia Machines that may be needed in the Medical Sector

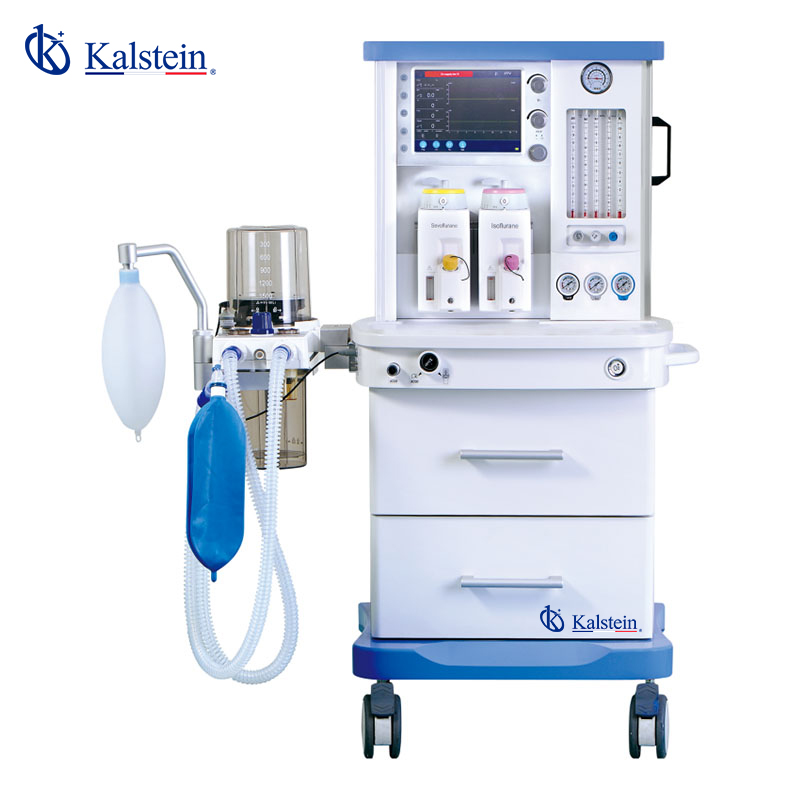

Anesthesia Machines YR02064
Anesthesia machine has integrated all major ventilation modes such as assist, control and assist-control ventilation....

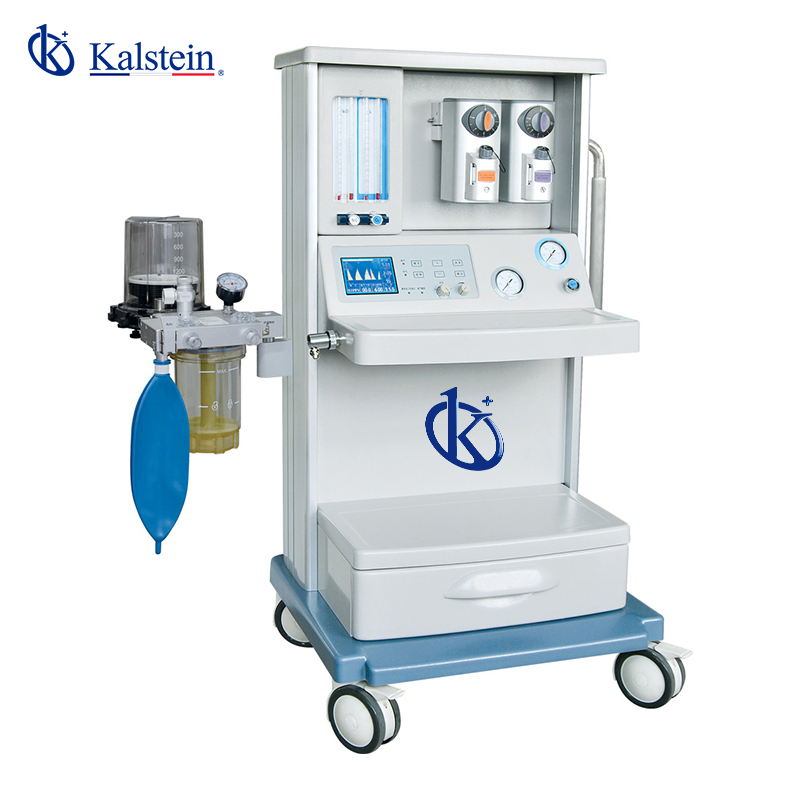

Anesthesia Machines YR02197
Anesthesia machine provides an affordable and flexible anesthesia solution for now and the future. Our customers can...
Our Top Selling Anesthesia Machine
Anesthesia machine has integrated all major ventilation modes such as assist, control and assist-control ventilation. It offers comprehensive monitoring and has a clear display interface, to help perform high quality anesthesia delivery and management. The anesthesia machine is suitable for inhalational anesthesia delivery for adult, pediatric and neonatal patients.
Technical Description
- Anesthesia machine offers a high-precision output as low as 20ml.
- It has automatic tidal volume and compliance compensation.
- The anesthesia machine offers spontaneous and manual respiratory MV monitoring function.
- It has electronic PEEP function.
- The anesthesia delivery workstation uses autoclavable and latex free components.
- Users can benefit from the tool-free maintenance and cleaning of this equipment.
- The anesthesia machine is CE compliant, so clients can feel secure in purchasing it.
Model | YR02064 | YR02065 | YR02066 | YR02067 | YR02068 | YR02069 |
Dimension | 810x860x1360 mm (WxDxH ) | |||||
Weight | 110 kg | |||||
Type of anesthetic | Halothane, enflurane, isoflurane, sevoflurane, desflurane | |||||
Gas supply | O2 + N2O or O2 + N2O + Air | |||||
Inlet pressure | 280 ~ 650kpa (350 ~ 400kpa recommended) | |||||
Standard ventilation. mode | VCV, PCV, PLV, PSV, SIMV + VCV + PS, SIMV + PCV + PS | |||||
Visual display | 12.1 in color | |||||
Value visualization
(configured and measured) |
Tidal volume, minute volume, respiratory rate, I: E ratio, pressure limit | |||||
Graphic display | Airway pressure (Ppeak, Pmean, Pmax, Pplateau, PEEP), FiO2%,
Compliance (ml / cmH2O), Pressure Support Level, Inspiratory, Window, P Trigger, Inspiratory End, EtCO2 and InCO2 (optional), CSI, BS%, SQI%, EMG% (optional) |
|||||
Optional expansion | Waveforms PT, FT, VT, PV, PF, FV loops (for compliance, resistance, leak analysis),
EtCO2 waveforms (when optional, EtCO2 module is present), CSI, BS%, SQI, EMG waveforms (when optional CSM is present)) |
|||||
Additional functions | 12.1 “external color LCD, O2 * 2 / N2O * 2 / Air * 2, Manual / VCV / PCV / PSV / SIMV, 1x Ohmeda Tec-7 isoflurane | 12.1 “external color LCD, O2 * 2 / N2O * 2 / Air * 2, Manual / VCV / PCV / PSV / SIMV, 1x Ohmeda Tec-7 isoflurane, 1xCSM | 12.1 “external color LCD, O2 * 2 / N2O * 2 / Air * 2, Manual / VCV / PCV / PSV / SIMV, 1x Ohmeda Tec-7 isoflurane, 1xCSM, 1x mainstream Et CO2 (Respironics) | 12.1 “external color LCD, E flowmeter, O2 * 2 / N2O * 2 / Air * 2, Manual / VCV / PCV / PSV / SIMV, 1x AGCO, 1x Ohmeda Tec-7 isoflurane | External 12.1 ″ color LCD, E-flowmeter, O2 * 2 / N2O * 2 / Air * 2, Manual / VCV / PCV / PSV / SIMV, 1x Ohmeda Tec-7 isoflurane, 1xCSM, 1xAGCO) | 12.1 “external color LCD, E flowmeter, O2 * 2 / N2O * 2 / Air * 2, Manual / VCV / PCV / PSV / SIMV, 1x Ohmeda Tec-7 Isoflurane, 1xCSM, 1xAGCO, 1x Main Multigas Analyzer Phasein (CO2, N2O, 5 AA) |
Analysis of the Best Anesthesia Machine in the Medical Sector
What is the function of an anesthesia machine?
The anesthesia machine is a device designed to supply a mixture of gases that allow the execution of a diagnostic...
Care when using an anesthetic machine?
The anesthesia machine is one of the most used medical devices in health centers, so its care and handling are...
SARS CoV-2 contamination in an anesthetic machine
Anesthetic machines are medical equipment used in hospitals and clinics to deliver anesthetic gases to a patient...
Safety in the Use of Anesthesia Machines
Anesthetic machines are medical equipment used in hospitals and clinics to deliver anesthetic gases to a...
Catalog of models of Anesthesia Machine on offer
Guides to becoming an expert in Anesthesia Machine
How is the Anesthesia Machine transported?
The anesthesia machine is a medical device specially designed to provide general anesthesia to a patient...
How are anesthesia machines used?
The anesthesia machine is a team able to introduce in patients anesthetic drugs that cause sedation and allows control of their...
What is the importance?
The anesthesia machine is one of the most used medical devices in health centers, so its care and handling are...
What controls an anesthetic machine?
The anesthesia machine is a team able to introduce in patients anesthetic drugs that cause sedation and allows control of their respiratory function....
Frequently Asked Questions about Anesthesia Machines from our customers
How do you know the prices of Anesthesia Machines?
To know the price of Anesthesia Machines we invite you to send us an email with your request through the contact form.
What are the delivery times of the Anesthesia Machine?
The delivery time of your Kalstein product it will depend on the following:
- If the equipment of your interest is in stock or if otherwise it must be manufactured.
- The type of freight you have chosen may be; air or sea.
- Equipment in stock:
- Delivery Time ( Aerial ): 15 -30 days .
- Delivery Time ( Maritime ): 45-60 days .
- Equipment not in stock:
- Delivery Time ( Aerial ): 30 -60 days .
- Delivery Time ( Maritime ): 60-90 days .
– Tiempo de Entrega (Maritimo): 60-90 dias.
How to make a purchase of Anesthesia Machines ?
It may perform your purchase through :
- By email: s[email protected]
- By telephone: +33 (0) 1 78 95 87 02
- Trade electronic : Through from Kalstein's official website in your country .
How does the warranty work?
At Kalstein we make it easy for our customers to provide induction and technical support through new online methods. You can visit our induction, technical assistance and guidance videos provided by a Kalstein team through our induction channel Youtube (Kalstein English) HERE
Can I request an online quote?
Of course, you can request a quote for the Kalstein team of your interest, directly from our website official. U Once you've identified your preferred model, do click k HERE
