Pcr Thermal Cyclers
PCR thermal cyclers are essential laboratory instruments designed to amplify DNA sequences through the polymerase chain reaction process. They enable precise temperature cycling to facilitate DNA denaturation, primer annealing, and extension by DNA polymerases, making them indispensable in molecular biology, clinical diagnostics, forensic science, and veterinary applications.
These devices offer versatility in applications such as genetic testing, pathogen detection, genetic research, and mutation analysis. Their programmable temperature controls and rapid cycling capabilities help increase the efficiency and accuracy of PCR assays, ultimately accelerating laboratory workflows and improving research outcomes.
What You Need to Know Before Choosing a PCR Thermal Cycler and Making an Investment
Key Factors to Consider
When choosing a PCR thermal cycler, one of the key factors is temperature accuracy and uniformity across sample wells, which directly affects the reliability of DNA amplification. Models with advanced block design and heated lid systems can reduce evaporation and improve consistency across runs.
Another important consideration is the cycler’s programming flexibility, including the number of programmable steps, ramp rates, and gradient functionality. These features enable laboratories to optimize protocols for various assays and improve experimental outcomes with precise temperature control.
Price Range in the Market
The price range for PCR thermal cyclers varies significantly depending on the brand, features, and throughput capacity. Entry-level models generally start at a few thousand dollars, while high-end thermal cyclers with advanced multiplexing and gradient options can reach tens of thousands of dollars.
Additional costs to consider include optional accessories such as block sizes for different tube formats, maintenance packages, and software upgrades. Understanding the total cost of ownership helps laboratories budget appropriately for long-term use.
Value for Money
Assessing value for money involves balancing cost with technical specifications, durability, and service support. Higher-priced models often offer enhanced thermal uniformity, faster cycling times, and greater programmability, which can improve lab productivity and data quality.
Investing in a reliable PCR thermal cycler with strong after-sales support may reduce downtime and repair expenses, ultimately maximizing return on investment through consistent performance and longevity in demanding laboratory environments.
Lifespan Expectations Based on Usage and Maintenance
The lifespan of PCR thermal cyclers depends largely on usage frequency, maintenance routines, and operational conditions. Proper cleaning, timely software updates, and scheduled calibration can extend equipment life and maintain reliability.
Regular preventive maintenance, including inspecting heating blocks and electronic components, helps identify potential issues early. Users should also follow manufacturer guidelines to optimize cycler performance and prolong operational lifespan.
KALSTEIN PCR THERMAL CYCLERS
Among so many products, at Kalstein you can find the ideal PCR thermal cycler for your Laboratory
If you are unsure which PCR thermal cycler to buy, it is important to evaluate your laboratory’s specific needs, such as throughput requirements, available features like gradient capability or block size, and budget constraints to ensure you select the most suitable equipment that balances precision and efficiency.
Real-Time PCR YR06689 // YR06691
The YR06689 // YR06691 family represents excellence in real-time PCR systems, specifically designed to meet the experime…

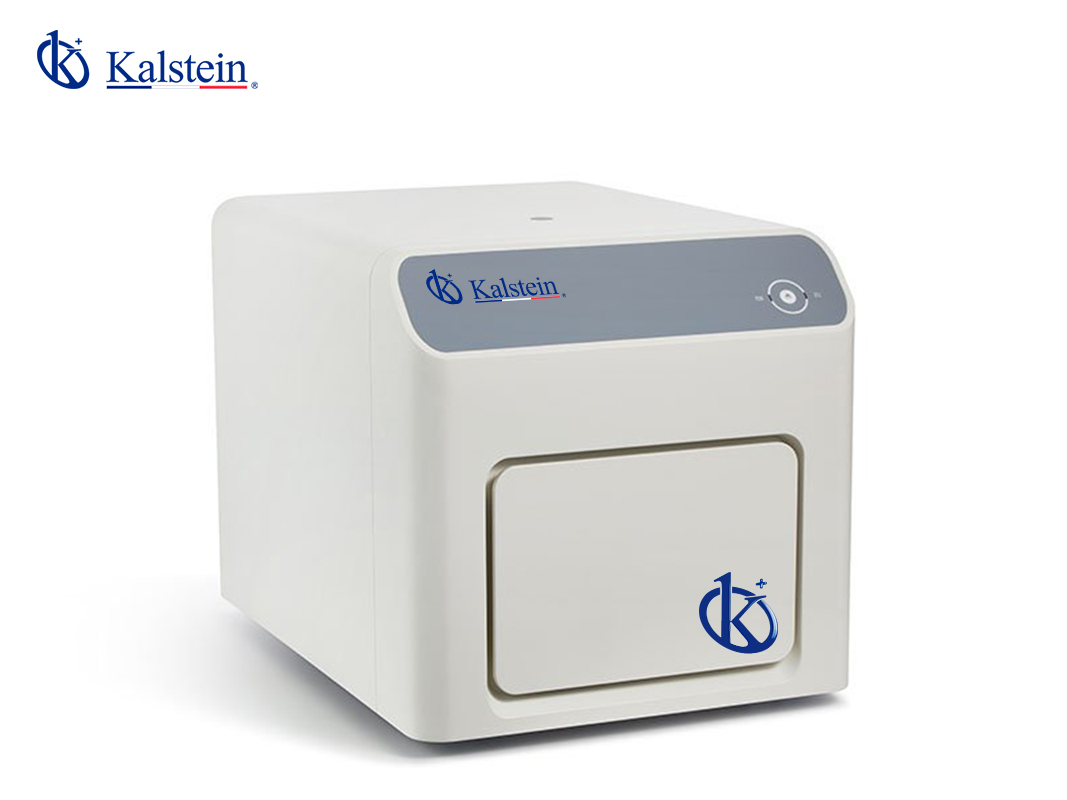

Real-time PCR System YR06248 // YR06249
The Real-Time Quantitative PCR System YR06248 – YR06249 is a highly advanced tool designed for precise and sensitive PCR…

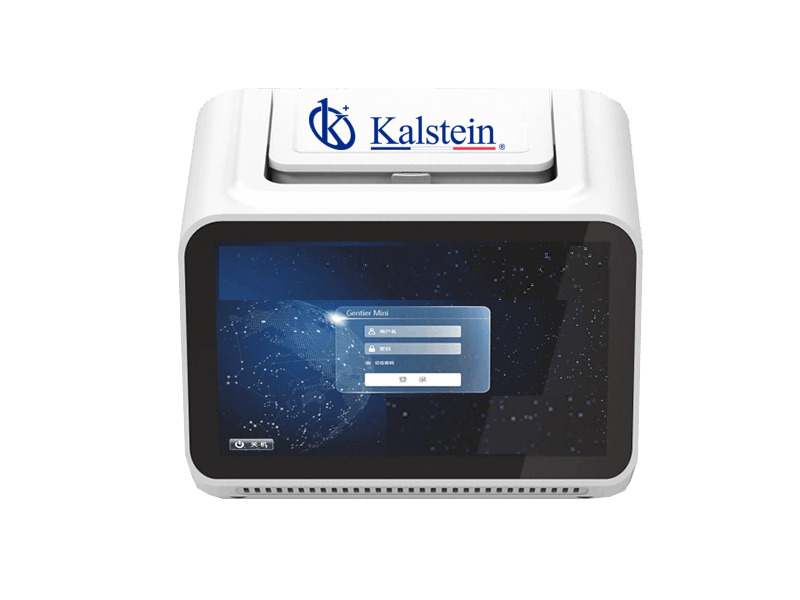

Real-time PCR System YR01867
The YR01867 Thermocycler is an advanced, portable device specially designed to meet the needs of mobile and small labora…
Biolum Portable ATP Hygiene Monitoring System YR06071
The Biolum Portable ATP Hygiene Monitoring System YR06071 stands at the forefront of hygiene technology, offering an ind…
Our PCR thermal cycler most sold

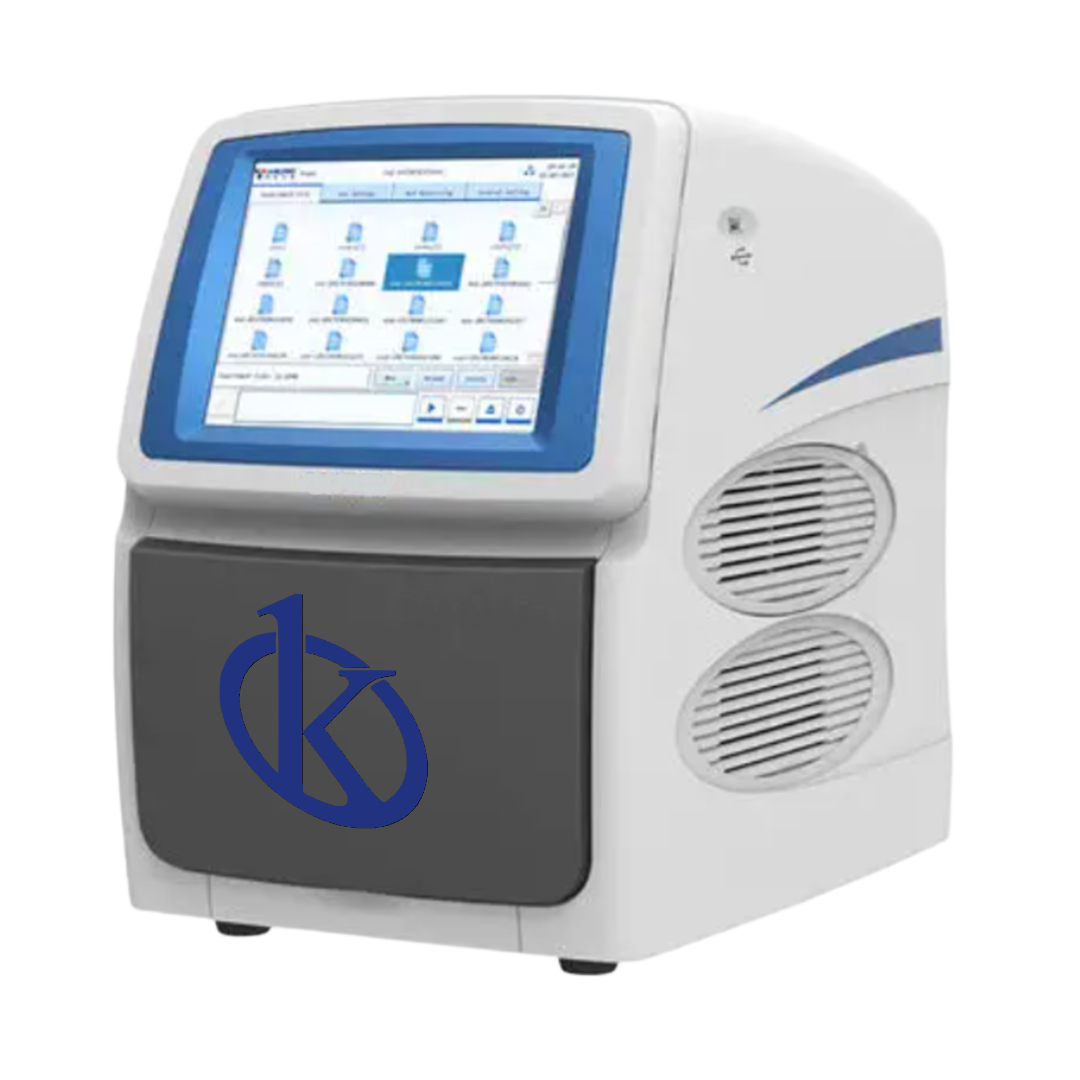

The YR06689 // YR06691 family represents excellence in real-time PCR systems, specifically designed to meet the experimental requirements of high-level laboratories, genetic research centers, and cutting-edge clinical diagnostic environments. With the capacity to process 96 samples per run, these units offer a comprehensive solution for multiplexed molecular detection.
Whether your laboratory requires maximum detection capacity with the 6 fluorescence channels of the YR06689 and YR06691 models, or an optimized 4-channel configuration with the YR06690 model, the series ensures absolute reliability. Its high-performance thermal control system and intuitive software allow specialists to perform complex analyses with unprecedented efficiency.
| Parameter | characteristics | ||
| Model | YR06689 | YR06690 | YR06691 |
| Sample Throughput | ene-96 | ene-96 | ene-96 |
| Fluorescence Channels | 6 | 6 | 4 |
| Scanning Time | 7 s | 7 s | 7 s |
| Light Source | LED (Top scanning) | LED (Top scanning) | LED (Top scanning) |
| Detector | Photodiode (PD) | Photodiode (PD) | Photodiode (PD) |
| Heating Method | Peltier | Peltier | Peltier |
| Heating Rate | >6.1 C/s | >6.1 C/s | >6.1 C/s |
| Cooling Rate | >5.0 C/s | >5.0 C/s | >5.0 C/s |
| Temperature Uniformity | ±0.1 C | ±0.1 C | ±0.1 C |
| Temperature Accuracy | ≤0.1 C | ≤0.1 C | ≤0.1 C |
| Gradient Range | 1 C – 40 C | 1 C – 40 C | 1 C – 40 C |
| Control Screen | 10.4″ Touch Screen | 10.4″ Touch Screen | 10.4″ Touch Screen |
| Internal Storage | 1000 results | 1000 results | 1000 results |
| PC Operating System | Win 7/10/11 | Win 7/10/11 | Win 7/10/11 |
| Power Consumption | 900 VA | 900 VA | 900 VA |
| Net Weight (kg) | 30 kg | 30 kg | 30 kg |
| Dimensions (LxWxH) | 55,5×47,5×48,4 cm | 55,5×47,5×48,4 cm | 35,5×47,5×48,4 cm |
| Consumables | 0.2ml Plate/8-tube strip | 0.2ml Plate/8-tube strip | 0.2ml Plate/8-tube strip |
Detailed analysis helps us choose the best cycler efficiently
Revolutionizing Laboratory Efficiency: The Kalstein PCR Thermal Cyclers
As someone deeply embedded in the world of laboratory research, I’ve had the privilege to explore various pieces of lab equipment over the years. Yet, the…
PCR Thermocyclers for Speed in DNA Amplification for Diagnostic Laboratories
Kalstein’s PCR thermocyclers are essential for laboratories specializing in molecular biology and genetics, where precision and speed are required for DNA…
PCR Thermocyclers: Precision and Speed in DNA Amplification
PCR thermocyclers have revolutionized biotechnology and biomedical sciences by enabling rapid and precise DNA amplification. From my experience working with the…
Efficiency in PCR with Advanced Thermocyclers for Molecular Research
The world of molecular biology has significantly advanced thanks to PCR Thermocyclers, essential devices for performing Polymerase Chain Reaction (PCR).
PCR thermal cyclers on offer
Real-Time PCR YR06689 // YR06691
Automatic Nucleic Acid Extractor YR01870
Automatic Nucleic Acid Extractor YR01869-2
Biolum Portable ATP Hygiene Monitoring System YR06071
Real-time PCR System YR06248 // YR06249
Automatic Nucleic Acid Extractor YR01871
PCR Thermal Cycler YR06070
Real-time PCR System YR01869
Kalstein offers latest models with advanced thermal control
Explore comprehensive guides on selecting and using thermal cyclers effectively in your lab workflows
Our expert recommendations and detailed guides will equip you to work proficiently with PCR thermal cyclers, optimizing results by understanding technical specs, maintenance tips, and operational best practices tailored for modern laboratories
High-Speed PCR Thermocyclers for DNA Amplification
PCR thermocyclers are essential devices in molecular biology and genetics labs where rapid and precise DNA sequence amplification is required. These m…
High-Efficiency PCR Thermocyclers for DNA Amplification
The polymerase chain reaction (PCR) technique is fundamental in molecular biology for amplifying DNA fragments. PCR thermocyclers are essential equipm…
High-Precision Genetic Amplification with PCR Thermal Cyclers
PCR thermal cyclers are essential instruments in molecular biology laboratories for carrying out the polymerase chain reaction (PCR), a technique that…
PCR Thermocyclers for Faster DNA Amplification
DNA amplification technology has advanced significantly, and PCR thermocyclers have played a crucial role in this progress. These devices allow for the rapid and efficient replication of DNA, a critical process in molecular biology, genomics, and cli…
FAQs
The delivery time of your Kalstein product depends on the following:
- Whether the equipment of your interest is in stock or needs to be manufactured.
- The type of freight selected, which can be either air or sea.
- Equipment in stock:
– Delivery Time (Air): 15-30 days.
– Delivery Time (Sea): 45-60 days.
- Equipment not in stock:
– Delivery Time (Air): 30-60 days.
– Delivery Time (Sea): 60-90 days.
You can make your purchase through:
- Email: [email protected]
- Phone: +33 (0) 1 70 39 26 50
- E-commerce: Via the official Kalstein website in your country.
At Kalstein we provide clients with online inductions and technical support. You can visit our induction videos, technical assistance, and guidance provided by the Kalstein team on our Youtube channel (Kalstein English) HERE.
