Manual Halogen Laboratory Microscope YR0266A // YR0266C
The Manual Halogen Laboratory Microscope YR0266A // YR0266C represents a cutting-edge solution in the realm of laborator…
Binocular Infinity Plan Laboratory Biological Microscope YR05787 – YR05788
The Binocular Infinity Plan Laboratory Biological Microscope YR05787 – YR05788 is an advanced tool designed for professi…
Zoom Stereo Microscope YR0246 // YR0248
The Zoom Stereo Microscope YR0246 // YR0248 offers a superior parallel optical system and modular design that easily acc…
Binocular LED Fluorescent Microscope YR06653
The YR06653 Binocular LED Fluorescent Microscope is an advanced tool designed for observation applications in pathology…
undefined
The Manual Halogen Laboratory Microscope YR0266A // YR0266C represents a cutting-edge solution in the realm of laboratory microscopy. As a newly designed, full auto motorized research-level scientific laboratory microscope, it is equipped with advanced features such as an electric platform, autofocus, electric objective conversion, touch screen controller, and robust imaging software. These elements collaborate seamlessly to enhance microscope observation, image acquisition, and processing while minimizing repetitive tasks, providing an efficient and stable imaging experience.
When scouting for advanced laboratory microscopes, it’s essential to consider the pricing landscape. The market offers various models with price ranges typically falling between $6,200 and $7,000, depending on the specific features and capabilities. For those interested in acquiring the Manual Halogen Laboratory Microscope YR0266A // YR0266C, it’s advised to request a precise quote. Use the Kalstein Plus platform to obtain an automatic quote and ensure you’re getting the latest model with the best features at a competitive price.
| Full Auto Motorized Research Level Scientific Laboratory Microscope | Accesory Number | YR0266A | YR0266B | YR0266C | |
| Optical System | NIS60 Infinity Optical System | ● | ● | ● | |
| Observation Method | Bright Field | ● | ● | ● | |
| Dark Field | ○ | ○ | ○ | ||
| Polarizing | ○ | ○ | ○ | ||
| Phase Contrast | ○ | ○ | ○ | ||
| Flourescent | ○ | ○ | ○ | ||
| DIC | ○ | ○ | ○ | ||
| Main Body | Manual Body + HalogenIllumination. | YR0266C-op1 | ● | – | – |
| Manual Body + LEDIllumination. | YR0266C-op2 | ● | – | – | |
| Semi-Auto Body + HalogenIllumination. | YR0266C-op3 | – | ● | – | |
| Auto Nosepiece + Auto Condenser + Auto Brightness Adjust | |||||
| Semi-Auto Body + LEDIllumination. | YR0266C-op4 | – | ● | – | |
| Auto Nosepiece + Auto Condenser + Auto Brightness Adjust | |||||
| Full Auto Body + LEDIllumination. | YR0266C-op5 | – | – | ● | |
| Auto Nosepiece + Auto Brightness + Auto X/Y/Z Stage+ Touch LCD Screen | |||||
| Head | Seidentopf Binocular Head, Inclined 30°, | YR0266C-op6 | ○ | ○ | ○ |
| Interpupillary Distance 47-78mm | |||||
| Seidentopf Trinocular Head, Inclined 30°, | YR0266C-op7 | ● | ○ | ● | |
| Interpupillary Distance 47-78mm, | |||||
| 3 Level Light Split Switch E100:P0/E20:P80/E0:P100 | YR0266C-op8 | ||||
| Ergo Tilting Trinocular Head, Inclination 0°~35°, | ○ | ● | ○ | ||
| Interpupillary Distance 47-78mm, | YR0266C-op9 | ||||
| 3 Level Light Split Switch E100:P0/E20:P80/E0:P100 | |||||
| Eyepiece | SW10x/25mm, High Eyepoint, Diopter Adjustable, Dia.30mm | YR0266C-op10 | ●● | ●● | ●● |
| SW10x/22mm, High Eyepoint, Diopter Adjustable, Dia.30mm | YR0266C-op11 | ○ | ○ | ○ | |
| EW12.5x/16mm, High Eyepoint | YR0266C-op12 | ○ | ○ | ○ | |
| WF15x/16mm, High Eyepoint, Diopter Adjustable, Dia.30mm | YR0266C-op13 | ○ | ○ | ○ | |
| WF20x/12mm, High Eyepoint, Diopter Adjustable, Dia.30mm | YR0266C-op14 | ○ | ○ | ○ | |
| Nosepiece | Manual Nosepiece, Quintuple, Backward, Center Adjustable | YR0266C-op15 | ○ | ○ | ○ |
| Manual Nosepiece, Sextuple, Backward | YR0266C-op16 | ● | – | – | |
| Coded Nosepiece, Sextuple, Backward, For Auto Brightness Adjust | YR0266C-op17 | ○ | – | – | |
| Auto Coded Nosepiece, Sextuple, Backward, | YR0266C-op18 | ○ | ● | ● | |
| Motorized Switch Objectives, Controled By: | |||||
| 1. Shortcut Button On Right Side Of Base, Can Switch 2 Preseted Objectives Quickly | |||||
| 2. Remote Control Pad In Front Of Base, Press Each Button To Switch Objectives And Adjust The Light Intensity Automatically. 2 Buttons Can Be Self-Defined For Most Commonly Used Objecives, Press Green Button Can Swap Between Them | |||||
| With Slot For Polarizing Compensator Slider Or DIC Slider | ● | ● | ● | ||
| Protect Cover For Nosepiece Holes | YR0266C-op19 | ● | ● | ● | |
| NIS60 | 2x/0.06, W.D.7.5mm, Cover Glass 0.17mm | YR0266C-op20 | ○ | ○ | ○ |
| N-PLN | 4x/0.10, W.D.30mm, Cover Glass 0.17mm | YR0266C-op21 | ● | ● | ● |
| Infinity Plan Objective | 10x/0.25, W.D.10.2mm, Cover Glass 0.17mm | YR0266C-op22 | ● | ● | ● |
| 20x/0.40, W.D.12mm, Cover Glass 0.17mm | YR0266C-op23 | ● | ● | ● | |
| 40x/0.65, W.D.0.7mm, Cover Glass 0.17mm | YR0266C-op24 | ● | ● | ● | |
| 50x/0.95(Oil, W.D.0.19mm, Cover Glass 0.17mm | YR0266C-op25 | ○ | ○ | ○ | |
| 60x/0.8, W.D.0.3mm, Cover Glass 0.17mm | YR0266C-op26 | ○ | ○ | ○ | |
| 100x/1.25(Oil), W.D.0.2mm, Cover Glass 0.17mm | YR0266C-op27 | ● | ● | ● | |
| NIS60APO Infinity Plan | 20x/0.75, W.D.1.1mm, Cover Glass 0.17mm | YR0266C-op28 | ○ | ○ | ○ |
| 100x/1.45(Oil), W.D.0.13mm, Cover Glass 0.17mm | YR0266C-op29 | ○ | ○ | ○ | |
| Working Stage | Double Layer Mechnical Stage Full Size 302x152mm, Stage Table Size 190x152mm, Moving Range 78x32mm, Double Slide Holder, With Gorilla Glass Insert, LeftHandle | YR0266C-op30 | ○ | – | ○ |
| Double Layer Mechnical Stage Full Size 302x152mm, Stage Table Size 190x152mm, Moving Range 78x32mm, Double Slide Holder, With Gorilla Glass Insert, RightHandle | YR0266C-op31 | ● | – | ○ | |
| Double Layer Mechnical Stage Full Size 302x152mm, Stage Table Size 190x152mm, Moving Range 78x32mm, Double Slide Holder, With Sapphire Glass Insert,LeftHandle | YR0266C-op32 | – | ○ | ○ | |
| Double Layer Mechnical Stage Full Size 302x152mm, Stage Table Size 190x152mm, Moving Range 78x32mm, Double Slide Holder, With Sapphire Glass Insert,RightHandle | YR0266C-op33 | – | ● | ○ | |
| Low Position Control Knob, Height Adjustable Up/Down 18mm, Convex Point Guide Mechanism For Easily Put Slide By One Hand, With Tension Adjustable Ring, With Safety Stop Screw | – | ● | ● | – | |
| Full-Auto X/Y/Z Motorized Control Working Stage, Including Control Joy Stick, | YR0266C-op34 | ○ | ○ | ● | |
| –Travel Range X:125mm, Y:75mmm, | |||||
| –Minimum Step 0.1um | |||||
| –Re-Position Accurate +/-1.5um | |||||
| –Max Speed 25mm/s | |||||
| –Size: 275x239x44.5mm | |||||
| –Soft Stop, Mechanical Stop, Opto-Electro Switch Stop | |||||
| –Z Axis Re-Position Accurate: Average +/-1.5um, Near Focus +/-0.1um | |||||
| –Z Axis Max Speed 10r/s | |||||
| –3D Control Stick, 4 Speeds | |||||
| –Connection By USB2.0 & RS232 | |||||
| –Communication Speed 9600 bits | |||||
| Z Axis Upgrade With Optical Grating Ruler | YR0266C-op35 | ○ | ○ | ○ | |
| Condenser | Swing-Out Condenser NA0.9/0.25 | YR0266C-op36 | ● | – | – |
| AutoSwing-Out Condenser NA0.9/0.25 | YR0266C-op37 | ● | – | ||
| Focusing | Coaxial Coarse & Fine Focusing, Fine Division 0.001mm, Focusing Range 35mm, Coarse Stroke 37.7mm, Fine Stroke 0.1mm, Can Exchange Hand Wheel Between Left/Righ | – | ● | ● | ● |
| Light Source | Transmit Kohler Illumination, Brightness Adjustable, | YR0266C-op38 | ● | ● | |
| 12V100W Halogen, External Lamp House | |||||
| TransmitKohler Illumination, Brightness Adjustable, | YR0266C-op39 | ● | |||
| 3W S-LED, Built-in Main Body | |||||
| ECO Function Support Auto Power Off After 30 Mins From Operator Leave To Save Energy | YR0266C-op40 | ● | ● | ● | |
| AutoBrightness Adjust, Brightness For Each Objective Can Be Memorized And Restored When Objective Is Selected | YR0266C-op41 | ○ | ● | ● | |
| (To Upgrade A12.1091 to Auto Brightness Adjust, Must Upgrade Its Nosepiece To A54.1091-6C Coded Nosepiece At Same Time) | |||||
| Filter For Transmit Light | Filter Holder On Base, Can Hold 3 Filters | YR0266C-op42 | ● | ● | ● |
| Filter LBD | YR0266C-op43 | ● | ● | ● | |
| Filter Green | YR0266C-op44 | ● | ● | ● | |
| Filter Yellow | YR0266C-op45 | ● | ● | ● | |
| Filter ND6 | YR0266C-op46 | ● | ● | ● | |
| Filter ND25 | YR0266C-op47 | ● | ● | ● | |
| Adapter | Eyepiece Adapter Dia.23.2mm | YR0266C-op48 | ○ | ○ | ○ |
| C-Mount 1.0x | YR0266C-op49 | ○ | ○ | ○ | |
| C-Mount 0.5x | YR0266C-op50 | ○ | ○ | ○ | |
| Software | NOMIS Basic Image Processiing Software | YR0266C-op51 | ○ | ○ | ○ |
| Dark Field | Dark Field Condenser, N.A. 0.7~0.9, Dry | YR0266C-op52 | ○ | ○ | ○ |
| Dark Field Condenser, N.A. 1.25~1.36, Immersion | YR0266C-op53 | ○ | ○ | ○ | |
| Dark Field Objective, Infinity Plan 100X, | YR0266C-op54 | ○ | ○ | ○ | |
| For Immersion Dark Field Observation | |||||
| Dark Field Objective, Infinity Plan 100X, With Iris Diaphragm, | YR0266C-op55 | ○ | ○ | ○ | |
| For Immersion Dark Field Observation | |||||
| Polarizing | Polarizer For Transmit Light Source, Swing-Out, On Collector | YR0266C-op56 | ○ | ○ | ○ |
| Analyzer For Transmit Light, Slide With Quartz Wedge Compensator | YR0266C-op57 | ○ | ○ | ○ | |
| 1Professional Polarizing Microscope | YR0266C-op58 | ○ | ○ | ||
| Phase Contrast | Turret Phase Contrast Condenser, Center Adjustable | YR0266C-op59 | ○ | ○ | ○ |
| Centering Telescope 10x | YR0266C-op60 | ○ | ○ | ○ | |
| Infinity Plan Phase Contrast Objective N-PLN PH 10x/0.25 | YR0266C-op61 | ○ | ○ | ○ | |
| Infinity Plan Phase Contrast Objective N-PLN PH 20x/0.40 | YR0266C-op62 | ○ | ○ | ○ | |
| Infinity Plan Phase Contrast Objective N-PLN PH 40x/0.65 | YR0266C-op63 | ○ | ○ | ○ | |
| Infinity Plan Phase Contrast Objective N-PLN PH 100x/1.25(Oil) | YR0266C-op64 | ○ | ○ | ○ | |
| DIC | Polarizer For Transmit Light Source | YR0266C-op65 | ○ | ○ | ○ |
| Turret DIC Condenser | YR0266C-op66 | ○ | ○ | ○ | |
| DIC Slide 10x, Used With Semi-APO Fluorescent Objective | YR0266C-op67 | ○ | ○ | ○ | |
| DIC Slide 20x/40x, Used With Semi-APO Fluorescent Objective | YR0266C-op68 | ○ | ○ | ○ | |
| DIC Slide 100x, Used With Semi-APO Fluorescent Objective | YR0266C-op69 | ○ | ○ | ○ | |
| DIC Slide With Analyzer 10x-20x | YR0266C-op70 | ○ | ○ | ○ | |
| DIC Slide With Analyzer 40x-100x | YR0266C-op71 | ○ | ○ | ○ | |
| NIS60 N-PLFN | 4x/0.13, W.D.16.5, Cover Glass 0.17mm | YR0266C-op72 | ○ | ○ | ○ |
| Semi-APO | 10x/0.3, W.D.8.1, Cover Glass 0.17mm | YR0266C-op73 | ○ | ○ | ○ |
| Fluorescent | 20x/0.5, W.D.2.1, Cover Glass 0.17mm | YR0266C-op74 | ○ | ○ | ○ |
| Objective | 40x/0.75, W.D.0.7, Cover Glass 0.17mm | YR0266C-op75 | ○ | ○ | ○ |
| For DIC | 100x/1.3, W.D.0.15, Cover Glass 0.17mm, Oil | YR0266C-op76 | ○ | ○ | ○ |
| Fluorescent | Fluorescent Microscope | YR0266C-op77 | – | ○ | ○ |
| Other Accessories | Working Stage Holder Bracket | YR0266C-op78 | ● | ● | ● |
| Adapter To Adjust Eye Position | YR0266C-op79 | ○ | ○ | ○ | |
| Adapter To Lower The Stage Position 1″ | YR0266C-op80 | ○ | ○ | ○ | |
| Immersion Oil | YR0266C-op81 | ● | ● | ● | |
| Allen Wrench | YR0266C-op82 | ● | ● | ● | |
| Power Cord | YR0266C-op83 | ● | ● | ● | |
| Short Eye Cover, For Eyepiece | YR0266C-op84 | ○ | ○ | ○ | |
| Long Eye Cover, For Eyepiece | YR0266C-op85 | ○ | ○ | ○ | |
| Eyepiece Micrometer, Cross | YR0266C-op86 | ○ | ○ | ○ | |
| Adapter Ring To Install Eyepiece Micrometer | YR0266C-op87 | ○ | ○ | ○ | |
| USB Cable | YR0266C-op88 | ○ | ○ | ○ | |
| Note:”●”In Table Is Standard Outfits,”○”Is Optional Accessories”-“Is Unavailable | |||||
undefined
Innovation in Microscopy: Precision Equipment for Scientific and Educational Analysis
The world of microscopy has evolved significantly over the last few decades, and today, we have high-precision tools that allow both scientists and students to…

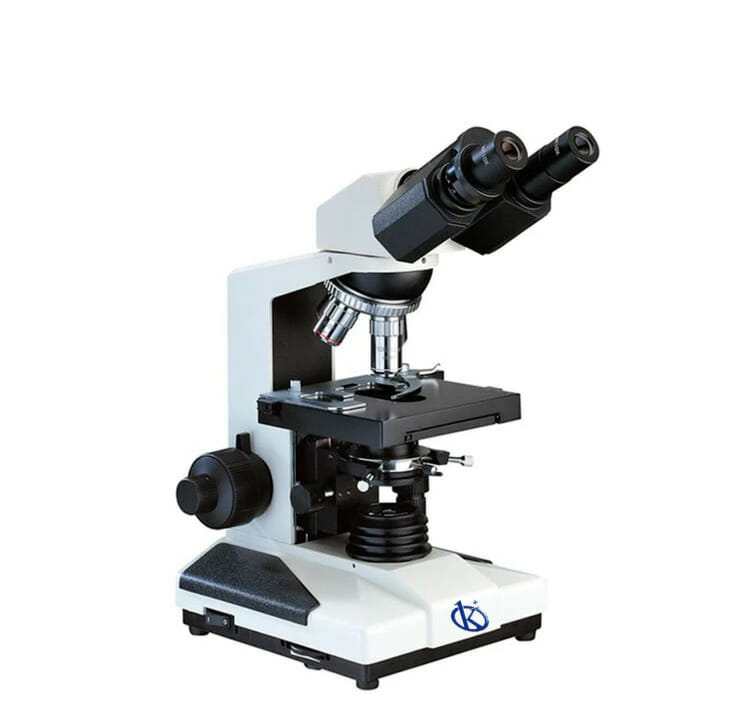

High-Resolution Microscopes: Clarity in Scientific Research
Modern scientific research requires precision tools that provide the clarity and detail needed to advance knowledge. One of the most essential instruments in th…
High-Resolution Optical Microscopes: Precision for Scientific Research
Kalstein’s optical microscopes stand out for their precision, image quality, and durability. If you have worked with laboratory instruments, you know that…

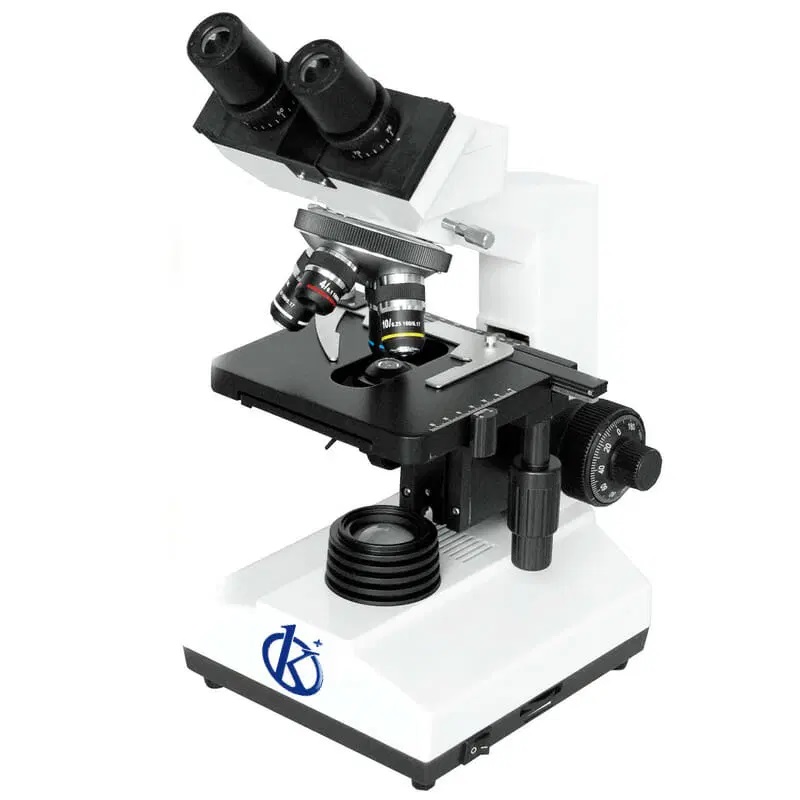

Laboratory Microscopes: Detailed Exploration for Precision Scientific Research
